Lockwood CORTEX® Digital Door Lock – Overview

Brand:

ASSA ABLOY (Lockwood Series)
Model: CORTEX® – Advanced digital lock for commercial and residential use.

Key Features:

• Multiple Access Options:

  • PIN code, RFID card, or dual authentication (PIN + card)

  • Stores up to 40 card users and 20 PIN codes

• Modes of Operation:

  • Normal access

  • Dual-credential mode (extra security)

  • Timed passage mode (auto-unlock during set hours)

  • Visitor access and one-time PIN options

• User Management:

  • Easy mode: basic configuration

  • Advanced mode: detailed scheduling, user roles, and logs

• Smart Features:

  • Battery level display (AA batteries – up to 40,000 operations)

  • Emergency override via key (optional on some models)

  • Low-battery warning system

Build & Design:

• Body Material: Zinc alloy with durable finish

• Fire Rated: Certified for up to 2 hours on compatible fire doors

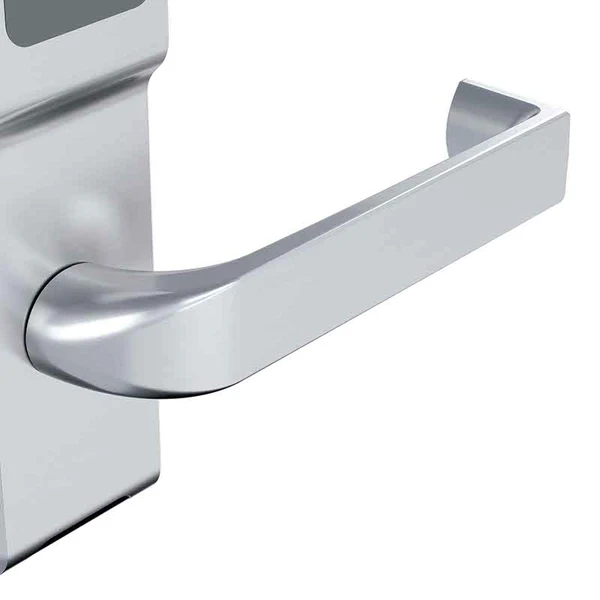

• Accessibility: Ergonomic lever compliant with accessibility standards

• Vandal Resistance: Built to withstand physical tampering (meets SL8 security standards)

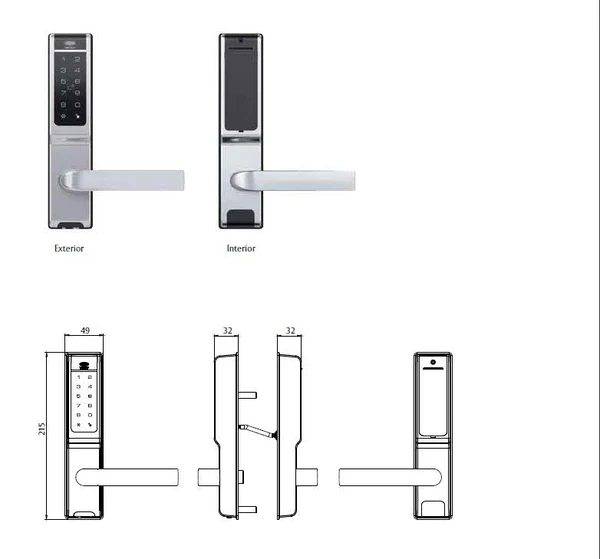

Technical Specs:

• Door Thickness Support: 35 mm to 48 mm

• Backset Options: 60 mm and 30 mm variants available

• Lock Type: Available in mortice or latch configurations

• Power Source: 4 x AA batteries

• Operation Temperature Range: Suitable for most indoor commercial environments

Use Cases:

• Offices

• Commercial buildings

• Institutions (schools, clinics, etc.)

• Residential buildings requiring high-grade access control

Considerations:

• May require professional installation, especially for fire-rated doors

• Ensure you use fresh, high-quality batteries to avoid lockout

• Some models may not be readily available in all regions due to limited stock or updated product lines
